The Power Team 30 Ton Hydraulic 2-1/2″ Single Acting Cylinder Center Hole RH302 is a versatile and reliable tool for precise hydraulic operations. With its single-acting design, it delivers controlled force for lifting and pushing tasks. Featuring a 2-1/2 inch center hole, it accommodates various applications in industrial environments. Built with durability and performance in mind, the RH302 ensures consistent operation, making it an indispensable component in hydraulic systems requiring efficient and accurate movement.
SPX Power Team hydraulic technology
SPX Power Team specializes in high-pressure hydraulic technology
Power Team offers solutions to overcome your heavy lift challenge with over 96 years of experience
VIEW MORE : SINGLE-ACTING CENTER HOLE

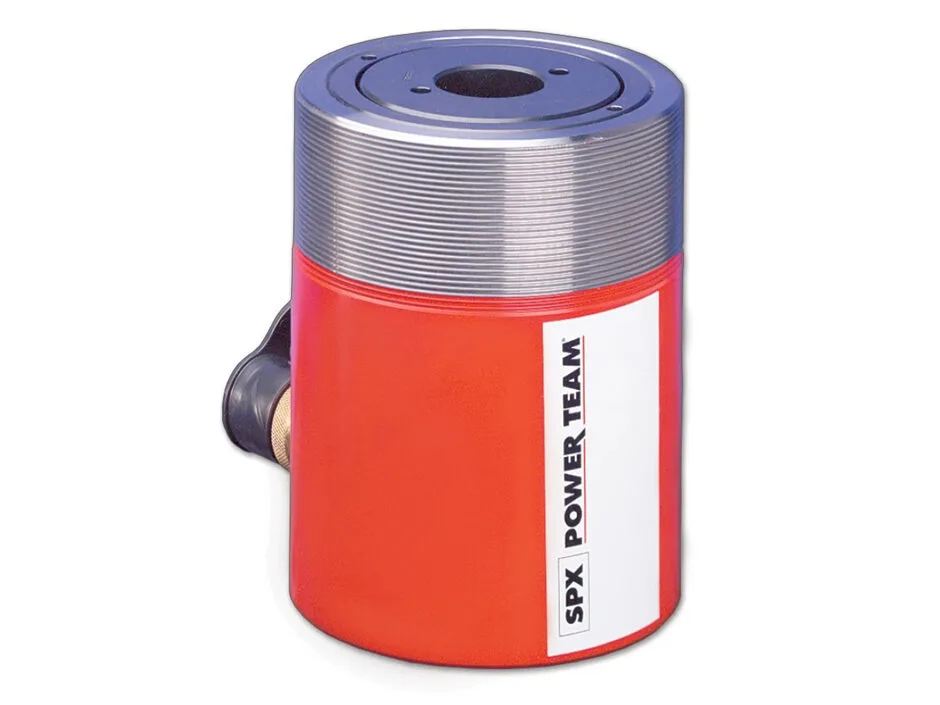

Power Team 30 Ton Hydraulic 2-1/2″ Single Acting Cylinder Center Hole RH302
- Basic head can be changed from a tapped hole to plain hole by simply changing insert
- 12; 20; 30; 50; 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
- Withstands full "dead-end" loads
- Corrosion resistant standpipe has "Power Tech" treatment
- All cylinders except RH120 are furnished with a 9796 3/8" NPT female half coupler
- Aluminum cylinder body and piston are featured on the RHA306 cylinder
| Stroke length: | 2.500" |
|---|---|
| Piston rod diameter: | 3.250" |
| Series/type: | RT-Series/Center hole |
| Actuation/return: | Single acting/Spring return |
| Cylinder capacity: | 30 Ton |
| Oil capacity: | 15.850"³ |
| Retracted height: | 6.250" |
| Extended height: | 8.750" |
| Effective area: | 6.340"² |
| Tons at 10;000 PSI: | 31.70 Ton |
| Max pressure: | 10;000 PSI |
| Bore size: | 2.841" |
| Base to port: | 1.156" |
| Outside diameter: | 4.750" |
| Center hole diameter: | 1.297" |
| Collar thread: | 4-3/4-12 |
| Collar thread length: | 1.500" |
| Insert thread size: | 2-3/4-12 |
| Material: | Aluminum |
| Weight: | 25.60lbs |
