Power Team Jacks and Cylinder Jacks

SINGLE ACTING, PANCAKE LOCKING COLLAR TONNAGE RANGE: 67-565

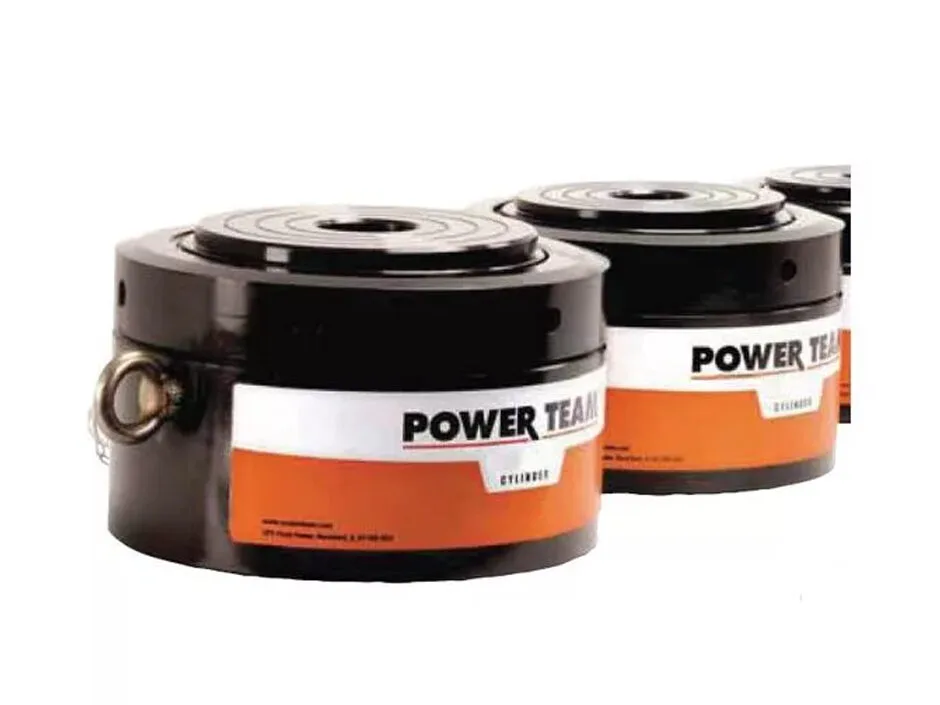

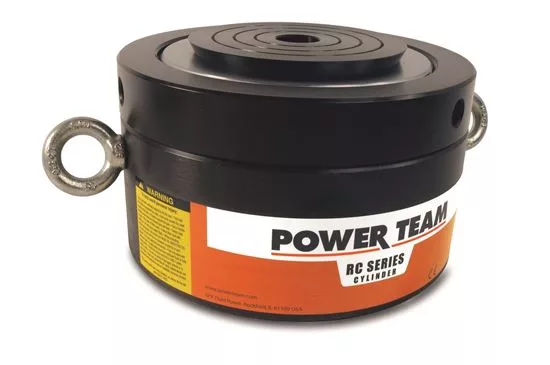

Pancake Locking Collar Cylinders – RGP Series RGP 672, RGP 4302

Power Team’s RGP Series of construction pancake cylinders are ideal for applications that require lifting in tight or confined spaces, such as bridge bearings on end caps or piers. The RGP Series is available with lifting capacities from 55 – 565 Tons (60,8 – 512,6 Metric tons).

The Power Team RGP Series delivers safety and durability for your heavy lifting applications.

power team

SINGLE ACTING, PANCAKE LOCKING COLLAR
TONNAGE RANGE: 67-565

Available in  the following Tonnage - 67 110 180 220 280 430 565





■ The Mechanical locking collar safely supports loads for
an extended period of time removing the chance of a
hydraulic leak down causing a load shift.
■ The Patented 5 degree deep swivel cap concentrates
loads to minimize offset conditions.
■ Compact design is ideal for confined areas
■ Buttress thread design supports locking collar strength
and security along with time saving quick run-down
■ Power-Tech nitro-carburization surface treatment
inhibits corrosion and provides exceptional durability
■ Weep hole provides visual indication of piston over
travel
■ One high flow 3/8” NPTF female half coupler and carry
eyelets are included
