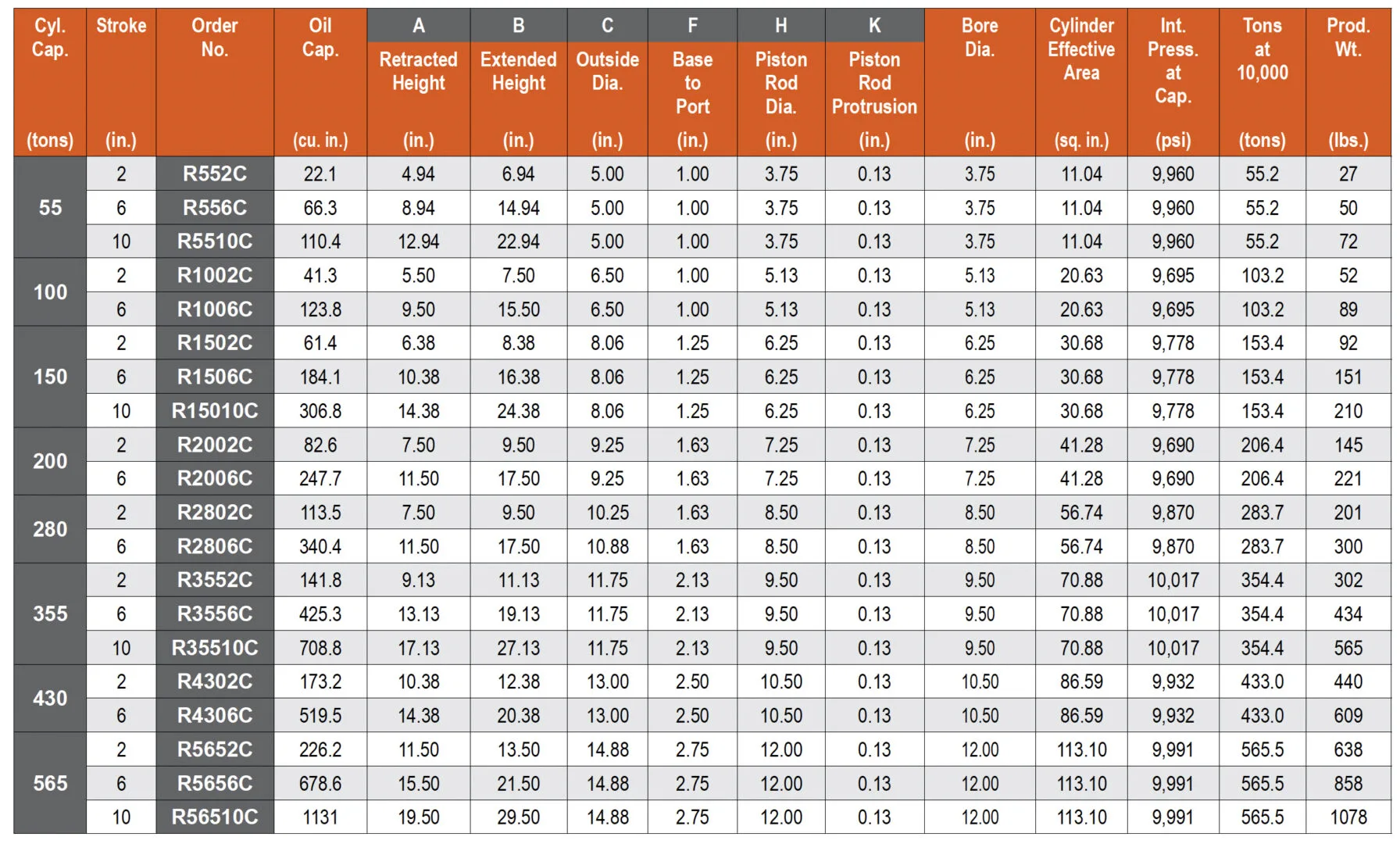

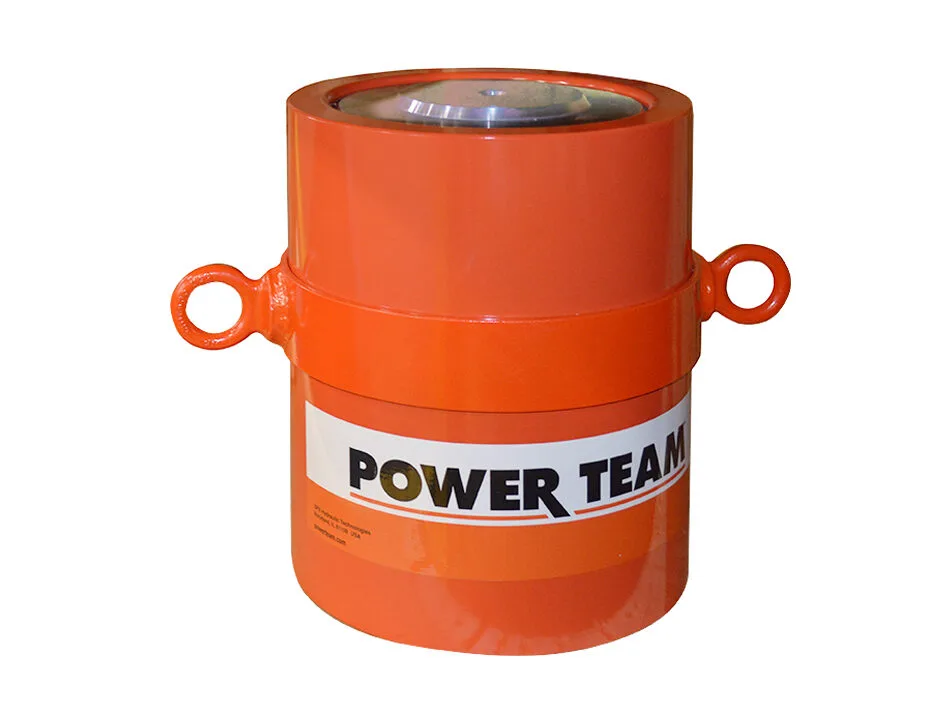

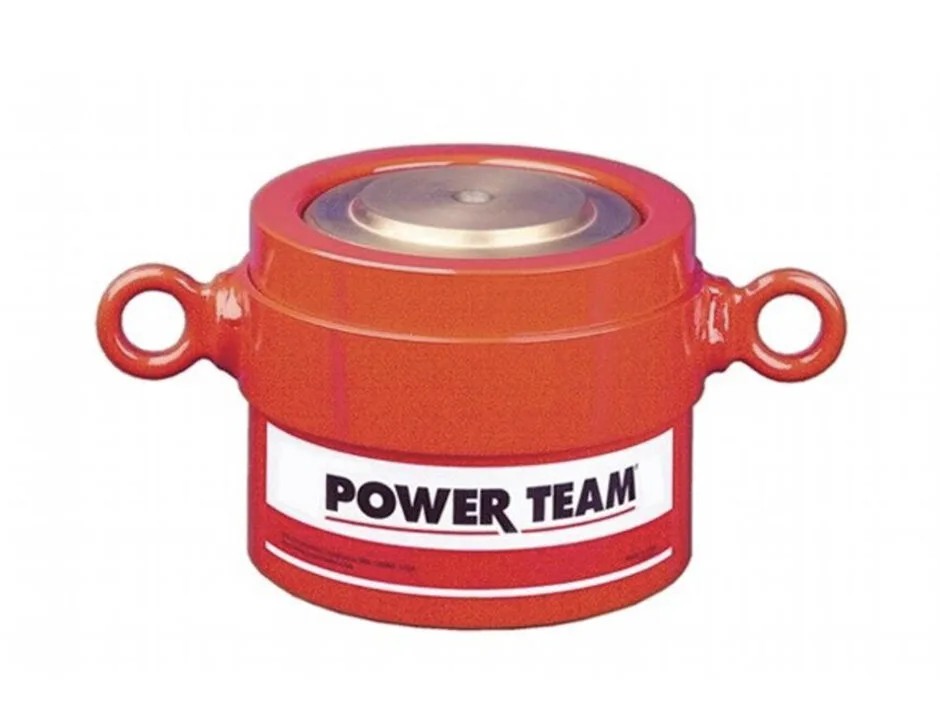

A - RETRACTED HEIGHT (IN. [MM]) 13.75 [349,3]
B - EXTENDED HEIGHT (IN. [MM]) 19.75 [501,7]
C - OUTSIDE DIAMETER (IN. [MM]) 10.88 [276,2]
F - BASE TO PORT (IN. [MM]) 1.63 [41,3]
H - PISTON ROD DIAMETER (IN. [MM]) 8.50 [215,9]
K - ROD PROTRUSION (IN. [MM]) 0.13 [3,2]
T - NUT THICKNESS (IN. [MM]) 2.25 [57,2]
BORE DIAMETER (IN. [MM]) 8.50 [215,9]
CYLINDER CAPACITY (TONS) 280
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²] 56.74 [366,0]
INTERNAL PRESSURE AT CAPACITY (PSI) 9870
OIL CAPACITY (CU. IN. [CM³]) 340.40 [5.583,0]
STROKE (IN. [MM]) 6.00 [152,4]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR] 283.70 [257,3]
WEIGHT (LBS. [KG]) 359.00 [163,0]
