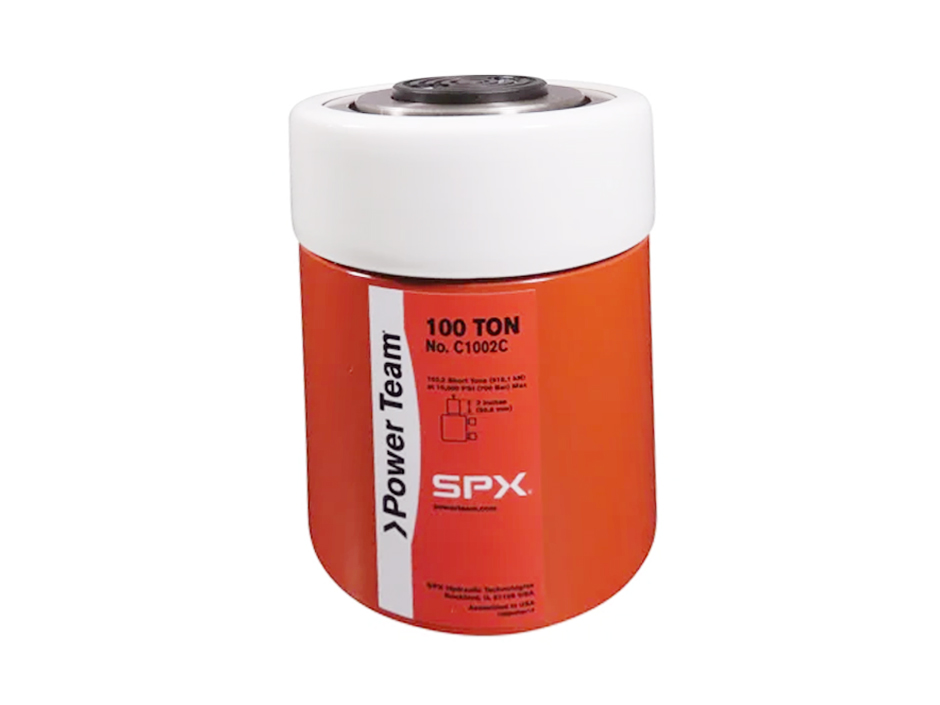

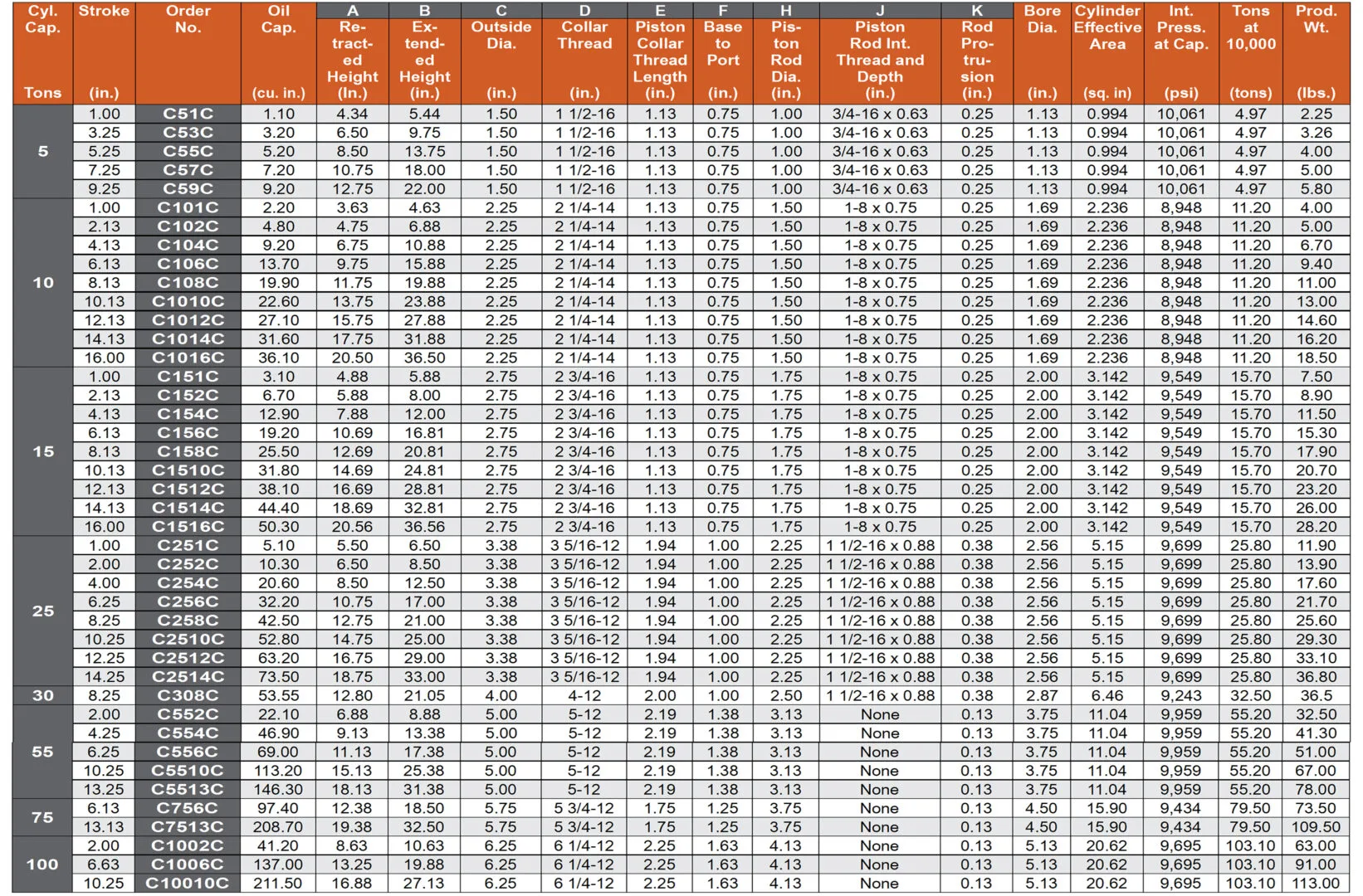

A - RETRACTED HEIGHT (IN. [MM]) 13.25 [336,6]
B - EXTENDED HEIGHT (IN. [MM]) 19.88 [504,8]
C - OUTSIDE DIAMETER (IN. [MM]) 6.25 [158,8]
D - COLLAR THREAD (IN.) 6 1
E - PISTON COLLAR THREAD LENGTH (IN. [MM]) 2.25 [57,2]
F - BASE TO PORT (IN. [MM]) 1.63 [41,3]
H - PISTON ROD DIAMETER (IN. [MM]) 4.13 [104,8]
J - PISTON ROD INTERNAL THREAD AND DEPTH (IN.) None
K - ROD PROTRUSION (IN. [MM]) 0.13 [3,2]
BORE DIAMETER (IN. [MM]) 5.13 [130,2]
CYLINDER CAPACITY (TONS) 100
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²] 20.62 [133,0]
INTERNAL PRESSURE AT CAPACITY (PSI) 9695
OIL CAPACITY (CU. IN. [CM³]) 137.00 [2.245]
STROKE (IN. [MM]) 6.63 [168,3]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR] 103.10 [93,6]
WEIGHT (LBS. [KG]) 91.00 [41,3]
