Post Tension/Stressing Jack - 20 Ton, 8-1/2 in Stroke

Power Team offers solutions to overcome your heavy lift challenge with over 96 years of experience

We have a comprehensive RENTAL Department

RENT NOW

Post Tension/Stressing Jack – 20 Ton, 8.5 in Stroke, 0.375 to 0.500 in Strand, 7575 psi Internal Pressure

The Power Team 20-Ton Post Tension/Stressing Jack is engineered for controlled tensioning of threaded rods, tendons, and anchorage systems in post-tensioning and structural stressing applications. Its high-strength hydraulic cylinder delivers uniform axial force across an 8.50 in stroke, enabling precise elongation of steel elements while maintaining concentric load alignment. The center-load configuration minimizes eccentric loading and ensures accurate force transfer during stressing operations in concrete construction and structural reinforcement systems.

Designed for repeatable performance in demanding jobsite conditions, the jack incorporates hardened load-bearing components, wear-resistant seals, and a precision-honed cylinder bore to maintain pressure integrity under cyclic loading. The robust steel housing resists deformation at full-rated capacity, while standardized hydraulic porting allows integration with 10,000 psi pumps and control systems. Its compact form factor and extended stroke make it suitable for bridge decks, slabs, beams, and anchorage zones requiring controlled, high-force tensioning.

VIEW MORE : POST-TENSION AND STRESSING

PRODUCT CODE:

SJ3010

CAPACITY:

20 TON

Stroke:

8.5 IN

Strand Diameter:

0.5 in

Seater Type:

MANUAL

Related Products

Use Cases

Post-Tensioned Concrete Construction: Tensioning of tendons in slabs, beams, bridge decks, and parking structures.
Structural Rod Stressing: Controlled elongation of threaded bars in anchorage, tie-down, and reinforcement systems.
Precast & Prestressed Components: Stressing operations during fabrication and field installation of precast elements.
Bridge & Infrastructure Projects: Accurate load application for tendons and anchorage systems in large-scale civil works.
Load Verification & Testing: Applied force generation for structural testing and verification procedures.

Advantages

High-Accuracy Axial Loading: Center-load design ensures concentric force application, reducing side loading and measurement error.
Extended Stroke Capability: 8.50 in stroke supports greater elongation without repositioning, improving job efficiency.
High Structural Rigidity: Thick-wall steel construction maintains dimensional stability at full rated load.
Seal & Bore Optimization: Precision-honed cylinder and wear-resistant seals enhance pressure retention and service life.
Compatibility: Standard 10,000 psi porting integrates easily with Power Team hydraulic pumps and controls.
Jobsite Durability: Designed to withstand repetitive stressing cycles in harsh construction environments.
The compact body and extended stroke support efficient stressing in confined anchorage zones common to bridge decks, slabs, beams, and precast structures.

Specifications

Capacity: 20 tons
Stroke: 8.50 in
Maximum Operating Pressure: 10,000 psi
Effective Piston Area: 4.0 in²
Center Load Configuration: Threaded rod / tendon pass-through
Collapsed Height: 15.0–16.0 in
Extended Height: 23.5–24.5 in
Outside Diameter: 4.0–4.5 in
Hydraulic Port Size: 3/8 in NPTF
Construction: High-strength steel body with hardened internal components
Weight: 35 lb

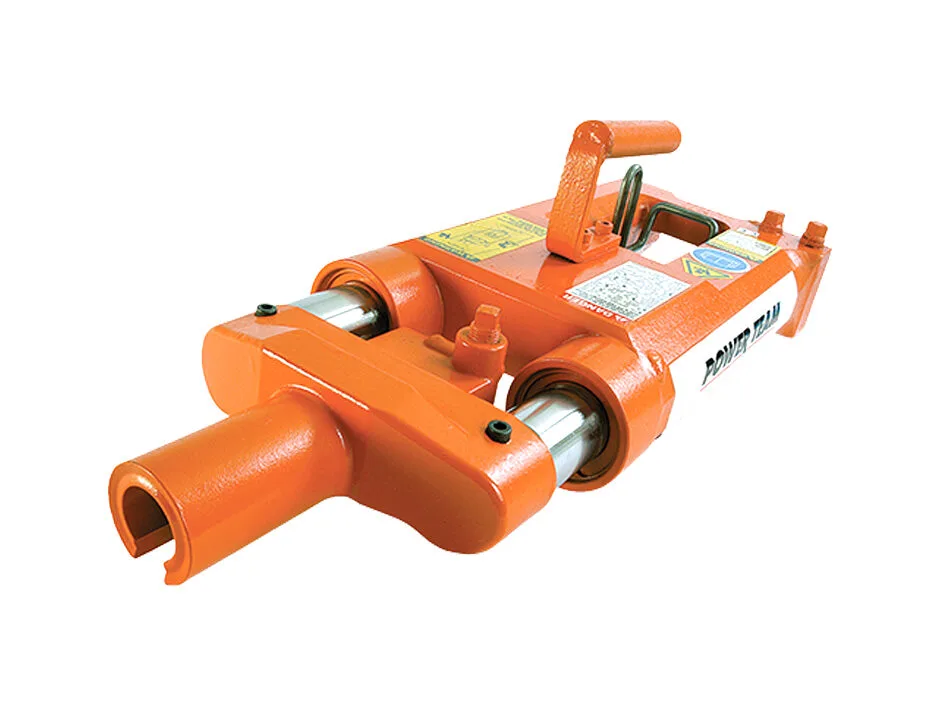

Powerteam-SJ3010

Engineered for demanding jobsite conditions, the jack incorporates hardened load-bearing components, wear-resistant sealing elements, and a precision-honed cylinder bore to maintain pressure integrity under cyclic loading.

The rigid steel housing resists deformation at full rated capacity, while standardized 10,000 psi hydraulic porting enables seamless integration with Power Team pumps and control valves.

Comparable Post-Tension & Stressing Jacks

Product	Brand	Tonnage	Stroke	Strand Diameter	Cylinder Movement	Seater Type
SJ2010P	Power Team	20	10	0.5	single-acting	Power
SJ2010DA	Power Team	30	10	0.6	double-acting	Power
SJ3010DA	Power Team	30	8.5	0.6	double-acting	Power

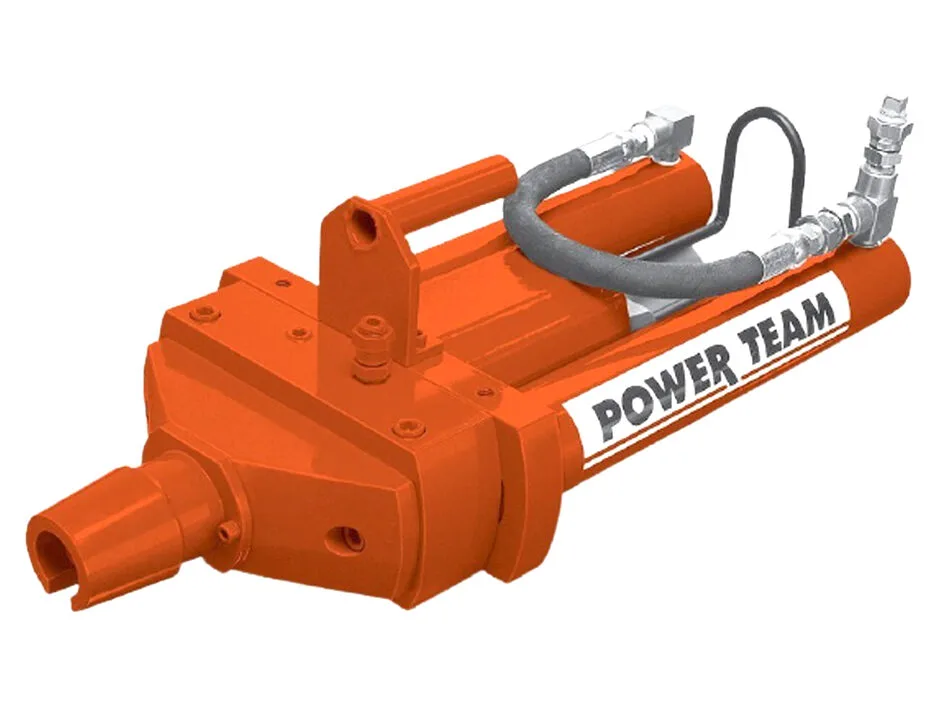

SJ2010	Power Team	20	10	0.5	single-acting	Manual
SJ3010	Power Team	20	8.5	0.5	single-acting	Manual

Cylinder Movement

Extension (Tensioning): When pressurized hydraulic fluid is pumped into the cylinder, it forces the piston and attached piston rod outward in a linear motion to apply force. This is the action used for tensioning cables or anchor bolts in post-tensioning applications.
Retraction (Return): The SJ3010 is a single-acting cylinder with a spring return mechanism. To retract the piston, the hydraulic pressure is released, allowing an internal spring to push the piston rod back into the cylinder body.
