Power Team RH10010 – 100 Ton, Double-Acting Center Hole, Cylinder 10.12 in stroke

The RH10010 is a robust 100-ton, double-acting center-hole hydraulic cylinder that in both extension and retraction, making it ideal for push / pull, tensioning, anchor bolt, and cable applications. It features a 10.12-inch stroke, a retracted height of 19.50 inches, and an extended height of 29.62 inches. It gives 106.9 tons of theoretical push force at 10,000 psi, and its (retract) side has (47.1 tons). The outside diameter 8.50 in, and it includes a 3.14 in center hole.

Built for durability and demanding service, the RH10010 includes features such as corrosion-resistant standpipe treatment via Power-Tech, plated piston rods to resist wear, superior packing combinations to minimize leakage, and interchangeable piston head inserts for application flexibility (plain vs tapped connections). A built-in safety feature helps prevent over-pressurization of the retract circuit, and the cylinder uses standard 9796 3/8 in NPTF female half couplers for hydraulic connections. Steel versions from 60 to 200 tons also come with removable carrying handles for easier handling.

VIEW MORE : DOUBLE-ACTING CENTER HOLE

Product code:

RH10010

Capacity:

100 TON

Product code:

Double-Acting

Cylinder Type:

Center Hole

Stroke Length:

10.12 IN

Product code:

19.50 in

Application Notes & Considerations

The RH10010 is tailored for demanding push/pull or tensioning operations where a through-rod or cable must pass through the piston—use cases include anchor bolt stressing, cable applications, stud forcing, or structural jacking with load reversal. Because it's double-acting, it offers controlled motion in both extension and retraction without relying on springs. The presence of a safety relief valve in the retract circuit is critical in preventing overpressure damage if retract fluid flow is restricted. As with any high-tonnage cylinder, alignment of load along the axis is essential to avoid side loads that accelerate wear. Maintenance or disassembly should be performed only by qualified technicians, especially given the presence of internal pressure components and the built-in relief valve.

The RH10010 includes a built-in relief valve in its retract circuit to prevent excessive pressure if the retract port becomes blocked or restricted. This is an overpressure safety feature and must not be tampered with. If it begins leaking oil, the cylinder should be removed from service and returned to an authorized repair center.
The cylinder uses Loctite 242 on the final 2–3 threads of the standpipe (for units built after Jan 1999) instead of a set screw, to lock the standpipe into the body.
The insert at the piston can be changed between a tapped (threaded) version or a plain through-hole, which gives flexibility for different applications (e.g. cable vs rod pass-through).
The manufacturer spec notes that, under push mode at full 10,000 psi, the RH10010 can deliver 106.9 tons, and in pull (retract) mode 47.1 tons, based on its effective areas.
Weight is 240 lb for the cylinder body.

Specifications

Capacity (push / extend): 100 ton
Capacity (pull / retract): 45 ton
Stroke: 10.12
Retracted Height: 19.50 in
Extended Height: 29.62 in
Effective Piston Area (push side): 21.39 in²
Effective Piston Area (pull side): 9.43 in²
Oil Capacity (push side): 216.6 in³
Oil Capacity (retract side): 95.5 in³
Bore diameter: 5.22 in
Piston rod diameter: 5.50 in
Center hole (through-rod) diameter: 3.14 in
Outside diameter: 8.50 in
Collar Thread: 8-½ – 12
Collar thread length: 2.25 in
Standard porting / couplers: Supplied with 9796 3/8" NPTF female half couplers on both ports
Construction / surface treatment: Standpipe and body components receive “Power-Tech” corrosion/abrasion treatment.
Safety feature: Built-in relief valve for retract circuit protection
Interchangeable piston head inserts: Allows changing between a plain through hole or tapped insert as needed.
Carrying handles: Steel models in 60–200 ton range (including RH10010) include removable handles for handling ease.

Comparable RH Series Cylinders

Product	Brand	Tonnage	Stroke	Return Type	Retracted Height	Cylinder Movement	Extended Height	Weight	Cylinder Eff. Area
RH10010	Power Team	100	10.13	Hydraulic-Return	19.5 in	Double-Acting	29.63	240	9.43
RH1508	Power Team	150	8	Hydraulic-Return	13.75 in	Double-Acting	21.75	227	15.9

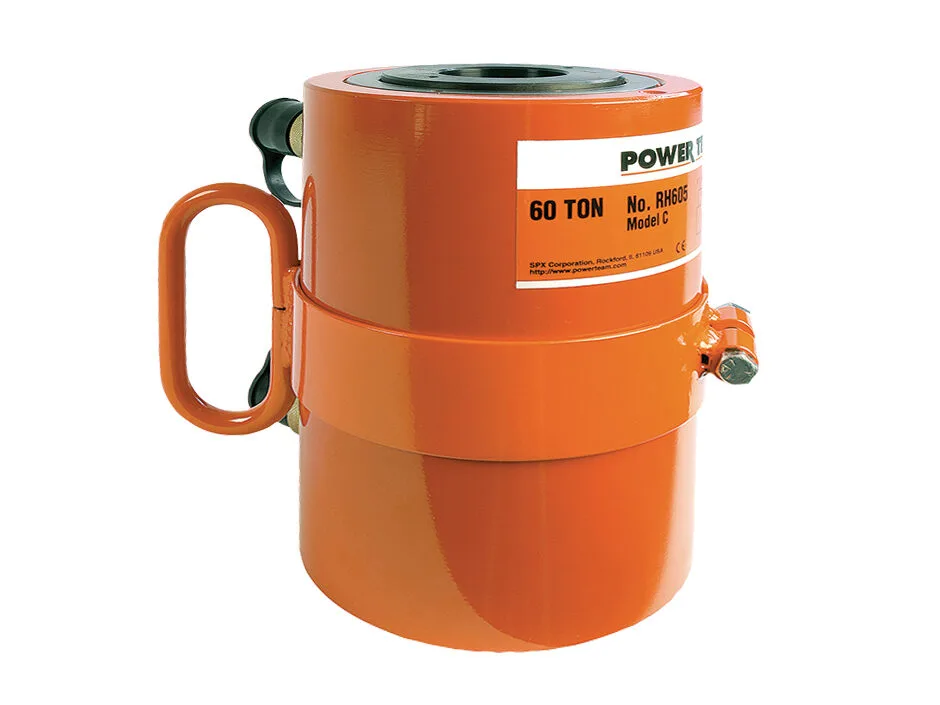

RH605	Power Team	60	5	Hydraulic-Return	9.5 in	Double-Acting	14.5	73	5.15
RH503	Power Team	50	3	Spring-Return	7.13 in	Single-Acting	10.13	46.6	10.86
RH1505	Power Team	150	5	Hydraulic-Return	12.25 in	Double-Acting	17.25	148	14.7
RH120	Power Team	12	0.31	Spring-Return	2.19 in	Single-Acting	2.5	3	2.76
RH306	Power Team	30	6	Spring-Return	9.75 in	Single-Acting	15.75	39	6.34
RH2008	Power Team	200	8	Hydraulic-Return	16.06 in	Double-Acting	24.06	311	15.95
RH1001	Power Team	100	1.5	Hydraulic-Return	6.5 in	Double-Acting	8	85	9.43
RH303	Power Team	30	3	Hydraulic-Return	7.06 in	Double-Acting	10.06	29.8	3.38
RH606	Power Team	60	6	Spring-Return	12.25 in	Single-Acting	18.25	78	12.31
RH203	Power Team	20	3	Spring-Return	6.06 in	Single-Acting	9.06	20	3.92
RH108	Power Team	10	8	Spring-Return	11.31 in	Single-Acting	19.31	18.7	2.21

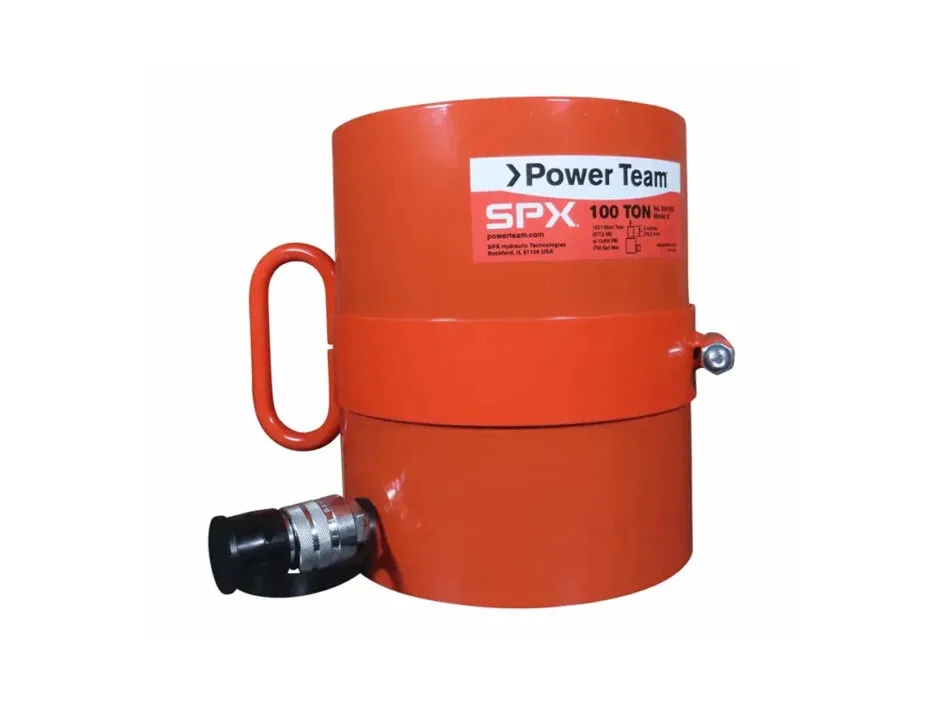

RH1003	Power Team	100	3	Spring-Return	10 in	Single-Acting	13	115	20.62
RH102	Power Team	10	2.5	Spring-Return	5.31 in	Single-Acting	7.81	9	2.21
RH202	Power Team	20	2	Spring-Return	6.13 in	Single-Acting	8.13	16.1	4.72
RH206	Power Team	20	6	Spring-Return	12.13 in	Single-Acting	18.13	30.2	4.72
RH121T	Power Team	12	1.63	Spring-Return	4.81 in	Single-Acting	6.44	6.6	2.76
RH121	Power Team	12	1.63	Spring-Return	4.81 in	Single-Acting	6.44	6.6	2.76
RH3010	Power Team	30	10.13	Hydraulic-Return	17.25 in	Double-Acting	27.38	61	4.04
RH123	Power Team	12	3	Spring-Return	7.25 in	Single-Acting	10.25	8.9	2.76
RH603	Power Team	60	3	Spring-Return	9.25 in	Single-Acting	12.25	60	12.31
RH306D	Power Team	30	6	Hydraulic-Return	11.06 in	Double-Acting	17.06	45	3.38
RH302	Power Team	30	2.5	Spring-Return	6.25 in	Single-Acting	8.75	25.6	6.34
RHA604D	Power Team	60	4	Hydraulic-Return	9.5 in	Double-Acting	13.5	35.6	5.15
RH6010	Power Team	60	10.13	Hydraulic-Return	18.06 in	Double-Acting	28.19	120	8.59
RH1006	Power Team	100	6	Hydraulic-Return	12.38 in	Double-Acting	18.38	95	10.93
RHA306	Power Team	30	5.88	Spring-Return	11.16 in	Single-Acting	17.03	21.9	6.34
